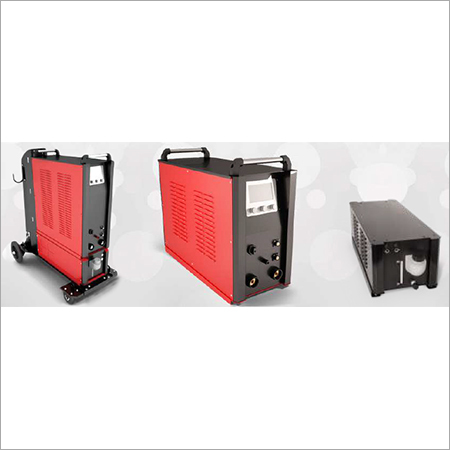

Sigma Weld MIG MAG FCAW

Specification

SW 250 MM

SW 400 MM

SW 600 MM

Rated input voltage

3Ñ„ ,415V,-+ 15%, 50HZ

3Ñ„ ,415V,-+ 15%, 50HZ

3Ñ„ ,415V,-+ 15%, 50HZ

power(KVA) at 10%

8KVA

13KVA

18KVA

Duty cycle @ 40^oc

200Amps @ 60%

400Amps @ 60%

600Amps @ 60%

Open cricuuit voltage

60 v

80 v

80 v

Output Current Range Ampers

8-250Amps

16To 30 volts

8-400Amps

16To 38 volts

8-600Amps

16To 30 volts

(D x W x H) mm

320 x 460 x 560 mm

320 x 460 x 560 mm

320 x 460 x 560 mm

Weight

32Kgs

35Kgs

57Kgs

Specification

SW 2 R WF

SW 4 R WF

SW 4 R WF

WIre Size

0.8~1.2

0.8~1.6

0.8~1.6

Wire Feed

2 Roll

4Roll

4Roll

Feeder Rate

2-24mtr/min

2-24mtr/min

2-24mtr/min

D x W x H

190 x 475 x 335

190 x 475 x 395

230 x 680 x 440
